OPTO Telecentric Lenses Up to 2/3" sensors
Optical components designed for use with sensors up to 2/3" in size, commonly used in machine vision and industrial inspection applications.
Opto Engineering (OPTO) offers a variety of lenses and optical components designed for use with sensors up to 2/3″ in size, commonly used in machine vision and industrial inspection applications. The 2/3″ sensor format is popular in machine vision cameras, and lenses in this category are designed to provide high-quality imaging performance across this sensor area.
Telecentric Lenses (TC Series, TC CORE Series)
Telecentric lenses are a cornerstone of precision machine vision and are heavily featured in OPTO’s product line for 2/3″ sensors.

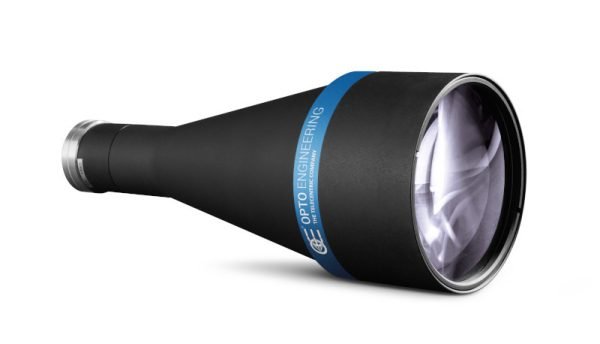

TC Series (Bi-Telecentric Lenses):
Primary Function: Ideal for accurate measurement applications (metrology) due to their bi-telecentric design.
Key Advantage: Provides constant magnification regardless of the object’s distance from the lens (within the depth of field). This virtually eliminates perspective error, which is critical for precise dimensional measurement.
Optical Performance: Designed for high resolution (e.g., up to 5 MP – 2/3″) with nearly zero distortion and high telecentricity.
Use Cases: Measurement of mechanical parts, such as extruded profiles or tiny gears.
Enhancements: Can be paired with telecentric illuminators (e.g., LTCLHP) to further enhance depth of field and optical accuracy.

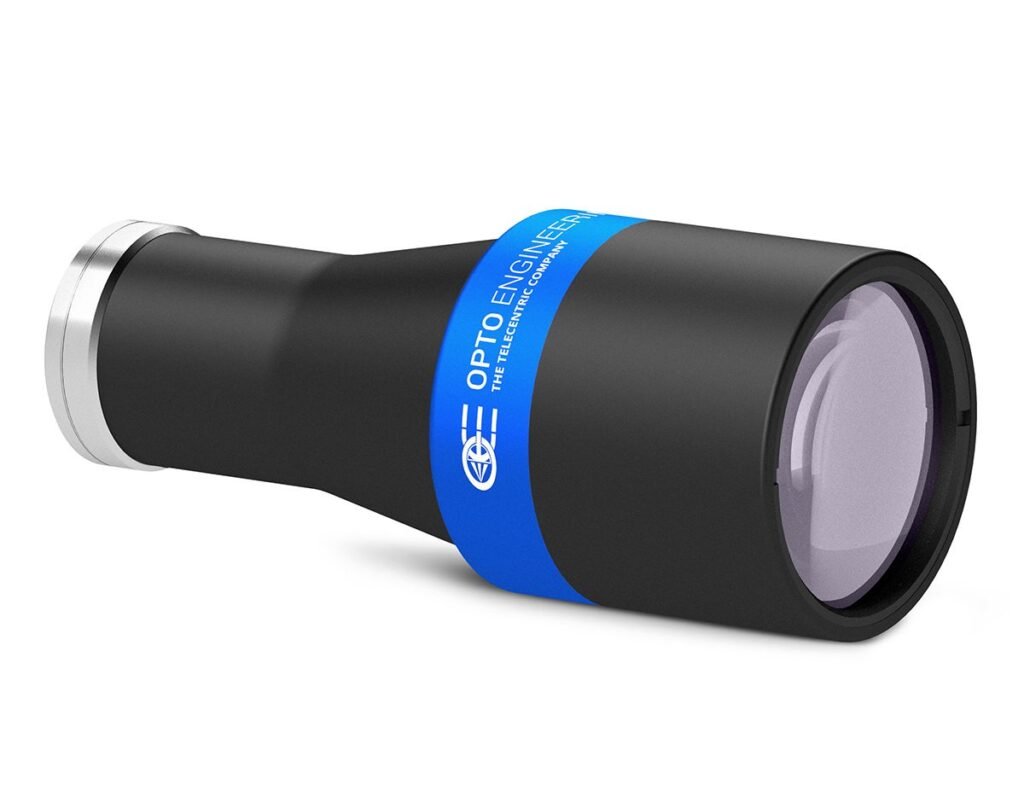

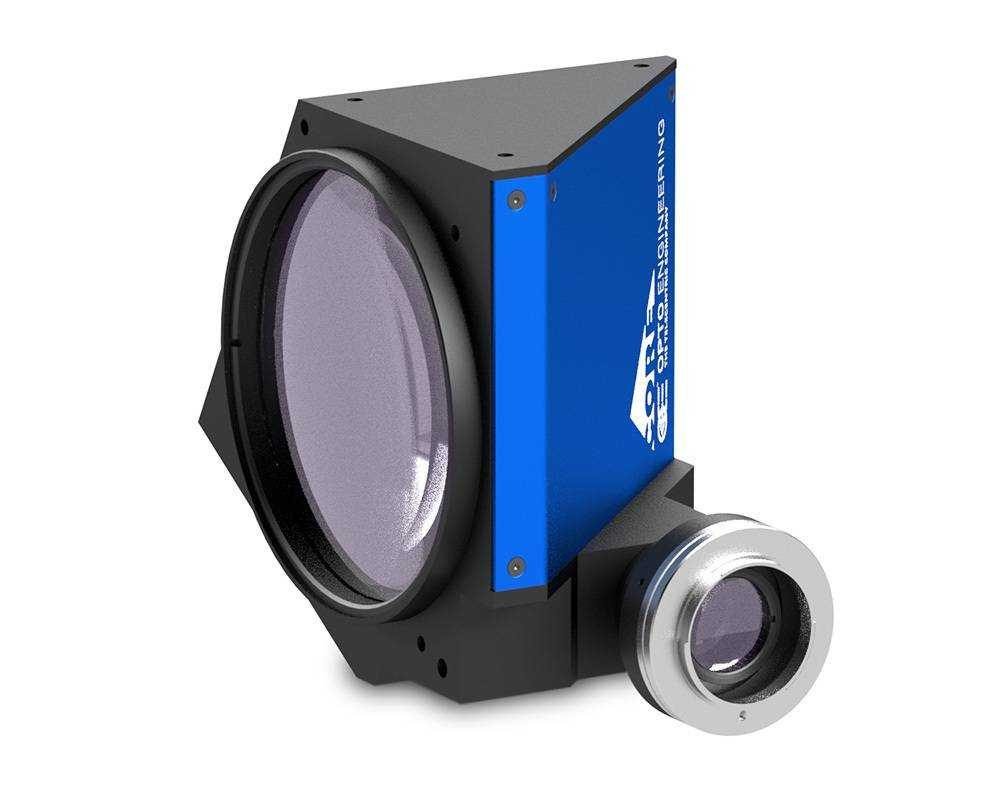

TC CORE / TC CORE PLUS Series (Ultra Compact Bi-Telecentric Lenses)
Key Feature: Revolutionary ultra-compact design, often up to 70% smaller than comparable double-sided telecentric lenses.
Advantage: Allows for significant downsizing of vision systems and easier integration into compact machines.
TC CORE PLUS: Specifically targets Large Field of View (FOV) in a super compact form factor, suitable for the latest generation $1/1.8″ and $2/3″ CMOS sensors.
Fixed Focal Length Lenses
These are traditional lenses offering high resolution and a fixed field of view at a given working distance.

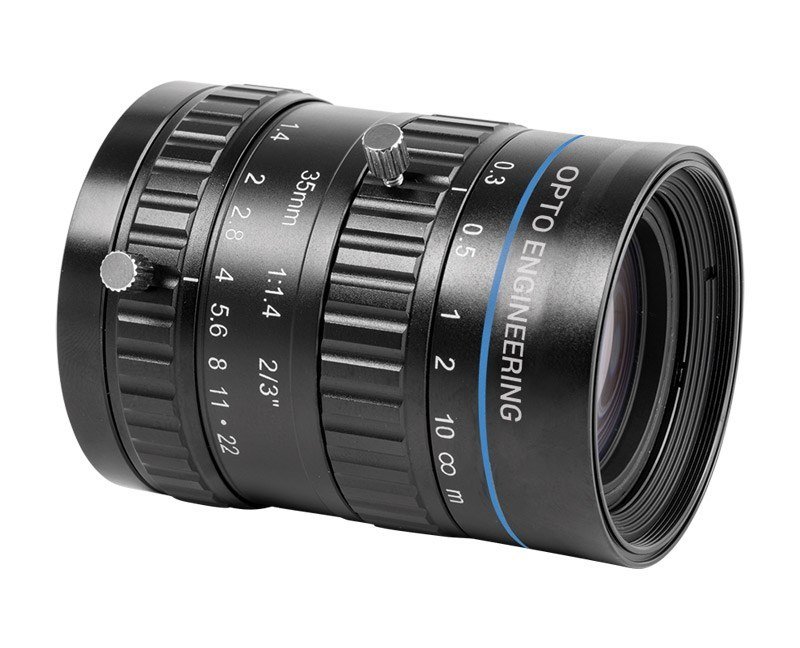

EN5MP / EN-5RT Series (5 Megapixel Fixed Focal Length Lenses):
Resolution: Designed for high-resolution cameras up to 5 Megapixel with 2/3″ sensors.
Focal Lengths: Wide range of focal lengths (e.g., 8 mm to 75 mm) to cover various Field of View (FOV) and working distance requirements.
Use Cases: General machine vision tasks, including OCR/OCV (Optical Character Recognition/Verification), robot guidance, and inspection of critical samples like connectors or electronic components.
Design: Cost-effective and robust for industrial environments.
Specialty Lenses and Zoom Lenses
OPTO also provides specific lens types for unique inspection needs.
Macro Zoom Lenses (MCZM Series):
Lenses that allow for a variable magnification range while maintaining a long working distance.
Variable Focal Length Lenses (ENVF Series):
Lenses where the focal length can be varied, offering flexibility in setting the FOV.
Multi-View/Pericentric/Hypercentric Lenses (e.g., PCMP, PCPW, PCBP Series):
Function: Lenses designed to simultaneously image the sides and top of an object or to inspect internal walls and bottom surfaces (borescopes), eliminating the need for multiple camera setups.
Use Cases: Inspection of cylindrical or complex parts (vials, batteries, bores).
Common Features
Mount
Wavelength Range
Many products are optimized for the visible (VIS) spectrum, with some special lenses available for UV or other ranges.
Test Report
Opto Engineering often provides a detailed Test Report with measured optical parameters to guarantee performance.
