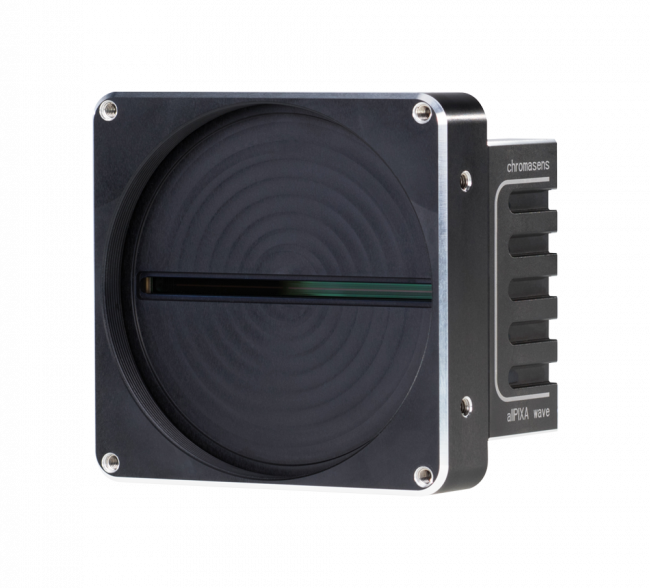

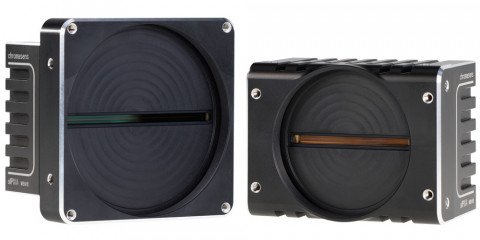

The allPIXA wave line scan cameras deliver CMOS performance in CCD image quality with trilinear true color RGB line scan sensors in ultra-high resolution of 10k and 15k. Equipped with the established Camera Link interface, it is a great solution for all high-resolution surface and web inspection tasks. Extended Camera Link cable length of 15m is possible.
All illumination types and geometries of the powerful Chromasens Corona II LED line illumination family can be used for image capture with allPIXA wave.

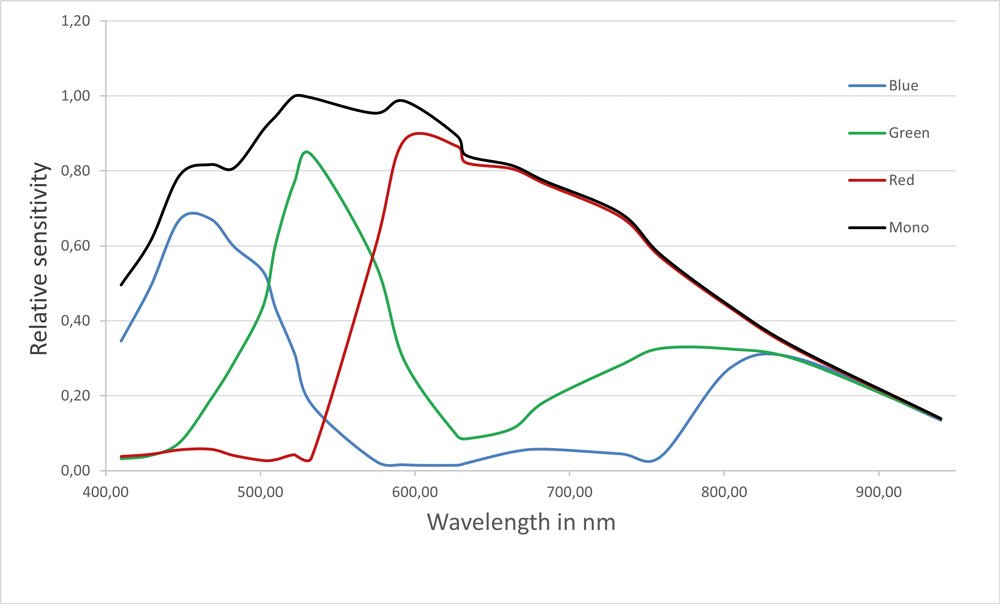

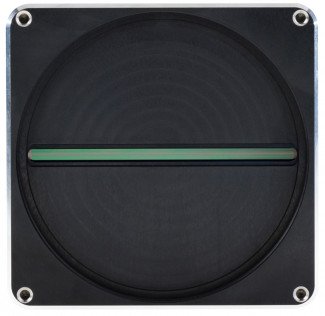

The CMOS sensor provides trilinear true color RGB image quality. allPIXA wave is available as a 10k and 15k resolution camera with 5,6 µm pixels. The camera delivers best results with excellent signal-to-noise ratio and continuous white balancing for high speed image processing. Multiple Color Conversion Matrix (CCM) and offset is supported.

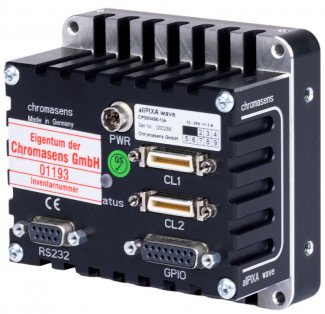

The camera series offers a Camera Link interface, which corresponds to the industry standard in image processing. It allows extended cable length of 15m.
Beide allPIXA wave-Modelle bieten im ROI-Modus Leitungsraten von bis zu 47,42 kHz.
The high resolutions of the sensor allow quality control, surface, semiconductor and electronics (PCB) inspection tasks at high throughput.
| Description | Part Number |
|---|---|
| allPIXA wave 10k CameraLink | CP000498-10k |
| allPIXA wave 10K CameraLink Mono | CP000498-10k-M |
| allPIXA wave 15k CameraLink | CP000498-15K |
| allPIXA wave 15k CameraLink Mono | CP000498-15K- |
