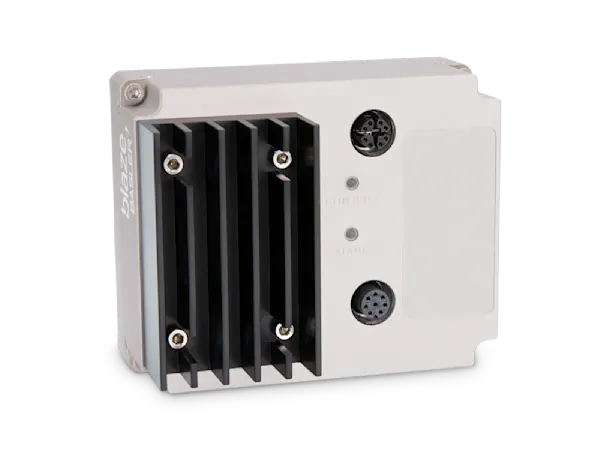

blaze-112
- 0.3 MP Resolution (MP)
- GigE Interface
- 30 fps Frame rate
The Basler blaze Time-of-Flight (ToF) camera blaze-112 offers an extra large field of view with high-resolution 3D images with near millimeter precision. It has high stray light robustness for precise indoor 3D imaging. With low power consumption and reduced heat generation, this ToF camera operates in the near-infrared wavelength range of 850 nm.
All specifications and downloads are available free of charge.
For easy commissioning and integration of the Basler ToF Camera, you need the pylon software with the complementary Supplementary Package.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 109245 |
| Camera Category | 3D Camera |
| Camera Series | Basler ToF Camera |
| Warranty | 36 Months |
Camera Data
| Measuring Method | Time-of-Flight Camera |
|---|---|
| Sensor Vendor | Sony |
| Sensor | DepthSense™ IMX556 |
| Resolution (H x V) | 640 px × 480 px |
| Resolution | VGA |
| Wavelength | 850 nm |
| Streaming Format | point cloud (XYZ); range map; intensity image; confidence map |
| Interface | GigE |
| Field of View | 108° x 77° |
| Working Range | 0.3 m – 10 m |
| Accuracy | ±5 mm (0.5 – 3.5 m); typical |
| Temporal Noise | < 1.7 mm (up to 3.5 m); typical |
| Frame rate | 30 fps |
| Latency | < 85 ms |
| Illumination | 4 x VCSEL laser diodes; 850 nm; class 1 |
| Sunlight Robustness | Max. irradiance 6.8 W/m² @ 830–880 nm |
| Data Connector | IEC 61076-2-109; M12; 8-pin; x-coded; female |
| Power Connector | IEC 61076-2-101; M12; 8-pin; female |
| Power Supply | 24 VDC ±10%; <11.5 W mean; <38 W peak |
| Mono/Color | Mono |
| Lens Mount | lens integrated |
| Synchronization |
|
| Exposure Control | programmable via the camera API |
Software Development Kit
| Components |
|
|---|---|
| Standards |
|
| Operating System |
|
| Programming Language |
|
| Third-Party Support |
|
Housing
| Protection Class | IP67 |
|---|---|
| Housing Size (L x W x H) | 100 mm x 81 mm x 64 mm |
| Weight | 680 g |
| Housing Type | Box |
| Mounting Points | 1/4-20 UNC thread (tripod); multiple M4 threads |
| Operating Temperature | 0 °C – 50 °C |
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- DIN EN 55022
- DIN EN 60068-2-27
- DIN EN 60068-2-6
- DIN EN 60068-2-64
- DIN EN 61000-6-4
- EAC
- Eye safety: IEC 60825-1:2014 Laser Class 1
- FCC
- GenICam
- GigE Vision
- IP67
- KC
- RoHS
- UKCA
