blaze-102
- 0.3 MP Resolution (MP)
- GigE Interface
- 30 fps Frame rate

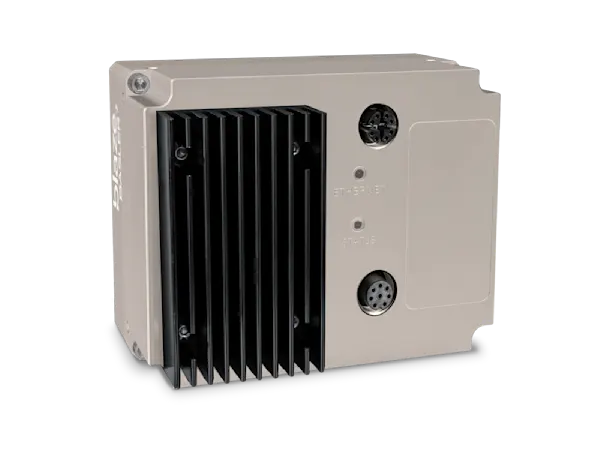

The Basler blaze-102 Time-of-Flight (ToF) camera provides high-resolution 3D images with near-millimeter accuracy. It has high robustness against stray light for precise indoor 3D imaging. With low power consumption and reduced heat generation, this ToF camera operates in the near-infrared wavelength range of 850 nm.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 108711 |
| Camera Category | 3D Camera |
| Camera Series | Basler ToF Camera |
| Warranty | 36 Months |
Camera Data
| Measuring Method | Time-of-Flight Camera |
|---|---|
| Sensor Vendor | Sony |
| Sensor | DepthSense™ IMX556 |
| Resolution (H x V) | 640 px × 480 px |
| Resolution | VGA |
| Wavelength | 850 nm |
| Streaming Format | point cloud (XYZ); range map; intensity image; confidence map |
| Interface | GigE |
| Field of View | 67° x 51° |
| Working Range | 0.3 m – 10 m |
| Accuracy | ±5 mm (0.5 – 5.5 m); typical |
| Temporal Noise | < 0.8 mm (up to 5.5 m); typical |
| Frame rate | 30 fps |
| Latency | < 85 ms |
| Illumination | 4 x VCSEL laser diodes; 850 nm; class 1 |
| Sunlight Robustness | Max. irradiance 6.8 W/m² @ 830–880 nm |
| Data Connector | IEC 61076-2-109; M12; 8-pin; x-coded; female |
| Power Connector | IEC 61076-2-101; M12; 8-pin; female |
| Power Supply | 24 VDC ±10%; <11.5 W mean; <38 W peak |
| Mono/Color | Mono |
| Lens Mount | lens integrated |
| Synchronization |
|
| Exposure Control | programmable via the camera API |
Software Development Kit
| Components |
|
|---|---|
| Standards |
|
| Operating System |
|
| Programming Language |
|
| Third-Party Support |
|
Housing
| Protection Class | IP67 |
|---|---|
| Housing Size (L x W x H) | 100 mm x 81 mm x 64 mm |
| Weight | 690 g |
| Housing Type | Box |
| Mounting Points | 1/4-20 UNC thread (tripod); multiple M4 threads |
| Operating Temperature | 0 °C – 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- DIN EN 55022
- DIN EN 60068-2-27
- DIN EN 60068-2-6
- DIN EN 60068-2-64
- DIN EN 61000-6-2
- DIN EN 61000-6-4
- EAC
- Eye safety: IEC 60825-1:2014 Laser Class 1
- FCC
- GenICam
- GigE Vision
- IP67
- KC
- RoHS
- UKCA
- UL
