r2L2048-62g5c
- GL3504 Sensor
- 2 k Resolution (k)
- 5GigE Interface
- 62 kHz Line Rate

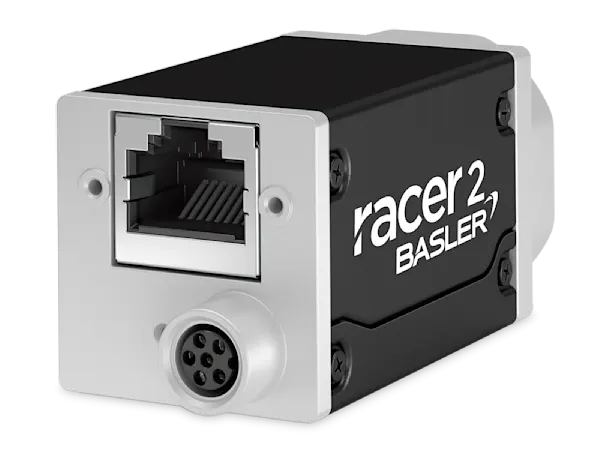

The Basler r2L2048-62g5c 5GigE camera with the GPixel GL3504 CMOS line scan sensor delivers 62 kHz at 2k resolution.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 109346 |
| Camera Category | Line Scan Camera |
| Camera Series | Basler racer 2 |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | Gpixel |
|---|---|
| Sensor | GL3504 |
| Shutter | Global Shutter |
| Sensor Type | Line Sensor |
| Resolution | 2k |
| Pixel Size (H x V) | 7 μm × 7 μm |
| Line Rate | 62 kHz |
| Mono/Color | Color |
| Spectrum | Visible |
Camera Data
| Interface | 5GigE |
|---|---|
| Pixel Bit Depth |
|
| Synchronization |
|
Housing
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm |
|---|---|
| Weight | 102 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C – 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- GigE Vision 2.0
- IP30
- KC
- UKCA
- UL
Easy Handling
| Auto Functions | Use the camera’s auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application. |
| Presettings | Automate recurring steps in your application by using the camera’s default settings and/or creating and saving your own presets. |
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
| Shading Correction | Ensure image line homogeneity by correcting sensitivity variations, lens shading, or lighting artifacts on a pixel-by-pixel basis. Shading sets enable accurate imaging under different and changing conditions. |
Process Control
| Digital I/Os | Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders. |
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
| Timing | Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
