raL8192-80km
- DR-8k-3.5 Sensor
- 8 k Resolution (k)
- Camera Link Interface
- 80 kHz Line Rate

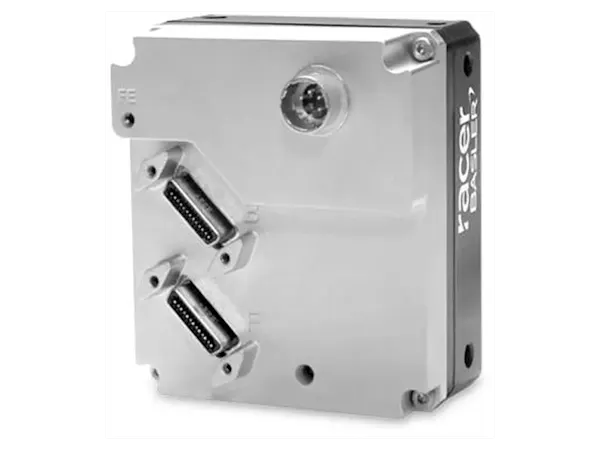

The Basler racer raL8192-80km Camera Link camera with the Awaiba DR-8k-3.5 CMOS sensor delivers 80 kHz at 8k resolution.
If you wish to attach a lens to the camera, you must order a lens mount adapter separately as an accessory. A lens mount adapter is not provided with the camera.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 106001 |
| Camera Category | Line Scan Camera |
| Camera Series | Basler racer |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | Awaiba |
|---|---|
| Sensor | DR-8k-3.5 |
| Shutter | Global Shutter |
| Sensor Type | CMOS |
| Resolution (H x V) | 8192 px × 1 px |
| Resolution | 8k |
| Pixel Size (H x V) | 3.5 μm × 3.5 μm |
| Line Rate | 80 kHz |
| Mono/Color | Mono |
| Spectrum | Visible |
Camera Data
| Interface | Camera Link |
|---|---|
| Video Output Type | Camera Link (full) |
| Pixel Bit Depth |
|
| Camera Link Clock | 32.5/48/65/83.5 |
| Synchronization |
|
| Exposure Control | trigger width or timed |
| Power Supply | 12-24 VDC |
EMVA Data
| Quantum Efficiency (typical/minimal) | 54.65 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 7.3 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 21.4 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 69.3 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 43.3 dB (typical) |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 34 mm x 56 mm x 62 mm |
| Weight | 210 g |
| Lens Mount |
|
| Operating Temperature | 0 °C – 50 °C |
Manufacturer
| Basler |
|---|
Conformity
- Camera Link
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- IP30
- KC
- RoHS
- UKCA
- UL
Easy Handling
| Auto Functions | Use the camera’s auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application. |
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
Process Control
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
