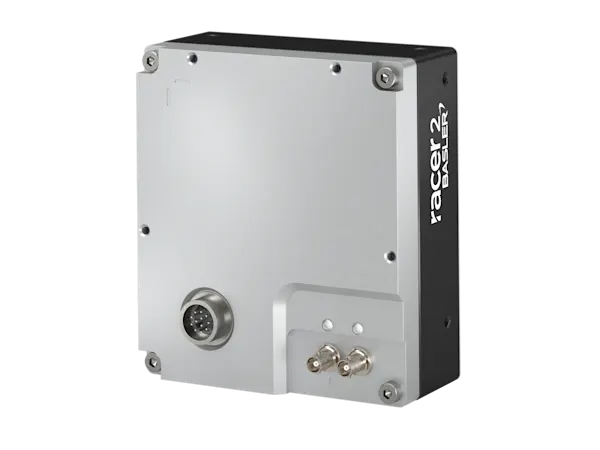

r2L8192-80cc
- GL7008 Sensor
- 8 k Resolution (k)
- CoaXPress (CXP-12) Interface
- 80 kHz Line Rate
The Basler r2L8192-80cc CoaXPress 2.0 camera with the GPixel GL7008 CMOS line scan sensor delivers 80 kHz at 8k resolution.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 108852 |
| Camera Category | Line Scan Camera |
| Camera Series | Basler racer 2 |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | Gpixel |
|---|---|
| Sensor | GL7008 |
| Shutter | Global Shutter |
| Sensor Type | CMOS |
| Resolution (H x V) | 8192 px × 4 px |
| Resolution | 8k |
| Pixel Size (H x V) | 7 μm × 7 μm |
| Line Rate | 80 kHz Calculate individual frame rate |
| Mono/Color | Color |
| Spectrum | Visible |
Camera Data
| Interface | CoaXPress (CXP-12) |
|---|---|
| Pixel Bit Depth |
|
| Synchronization |
|
| Digital Input | 3 |
| Digital Output | 3 |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 36 mm x 80 mm x 90 mm |
| Weight | 420 g |
| Lens Mount | M72 x 0.75 |
| Operating Temperature | 0 °C – 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- CoaXPress 2.0
- FCC
- GenICam
- KC
- RoHS
- UKCA
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
Process Control
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
| Timing | Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
