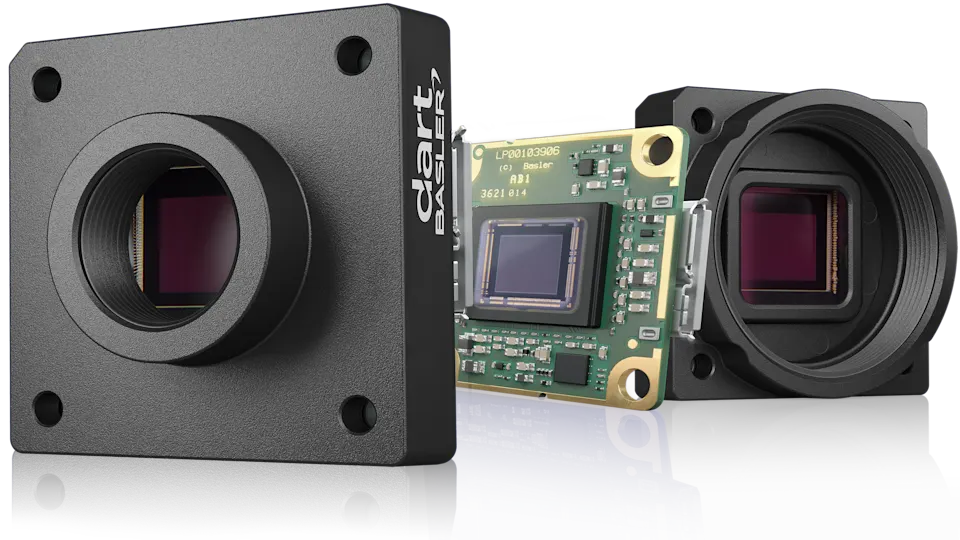

Basler dart
Compact, board level camera with excellent image quality
Looking for a flexible camera for factory or embedded applications? The Basler dart—with its small design, low weight, low power consumption, and various mounting options—is the right choice for you.
Board level design
Variety of mounting options
Bare board, S-mount, C-mount and CS-mount
Diverse sensor options
Resolutions from VGA to 13 MP and frame rates from 14 to 523 fps
Interface diversity
GigE, USB 3.0, and BCON for MIPI interface options
dart camera series
The dart M, dart Classic, dart R, and dart E camera families differ in terms of their sensors and interfaces. They are all suitable for a wide range of tasks in the factory sector, with the dart E models being specially designed for embedded applications.

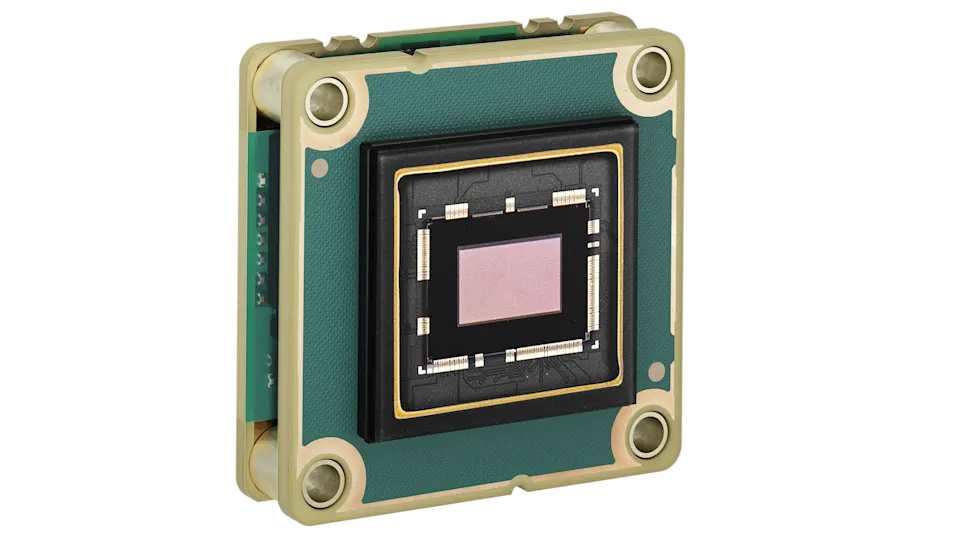

dart M
The models in the dart M camera family can be expanded modularly from the initial camera module to include a flat flex cable, interface board, and mount. This flexible product concept offers a wide range of configuration options.
Camera module with Sony CMOS sensors
Option to connect the camera module and interface board via flat flex cables of various lengths
Interface board available with AUX power and PoE
Bareboard camera: S-, C- and CS-mounts available
With GigE interface

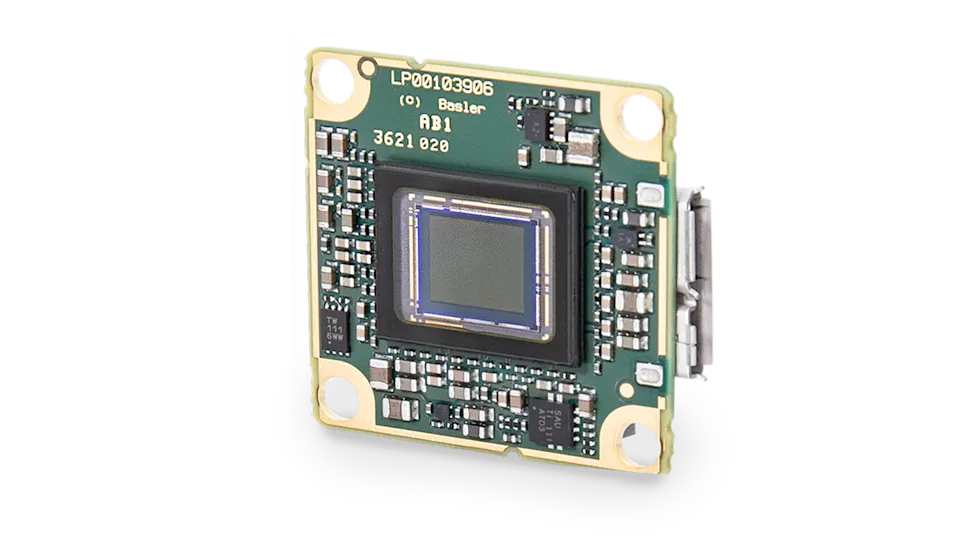

dart Classic
The dart Classic camera models were the first family available as bare board variants with a footprint of only 27 mm x 27 mm. This small design can be found in all subsequent dart camera families.
With proven CMOS sensors from onsemi and e2V
Available as bare board option, with S- or CS-mounts
With USB 3.0 interface
Backward compatible with USB 2.0

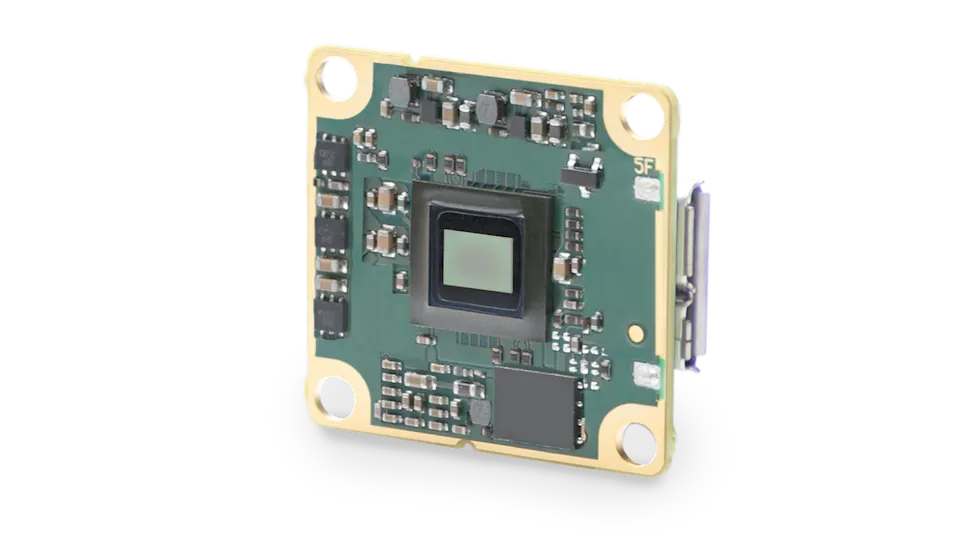

dart R
With the introduction of new CMOS sensors and improved features, the dart camera series continued to evolve. The dart R models feature optimized hardware, firmware, and sensor technology.
With Sony CMOS sensors from the Pregius S, Pregius, and Starvis series
High-speed models available with up to 523 fps
Available as bare board option, with S- or CS-mounts
With USB 3.0 interface

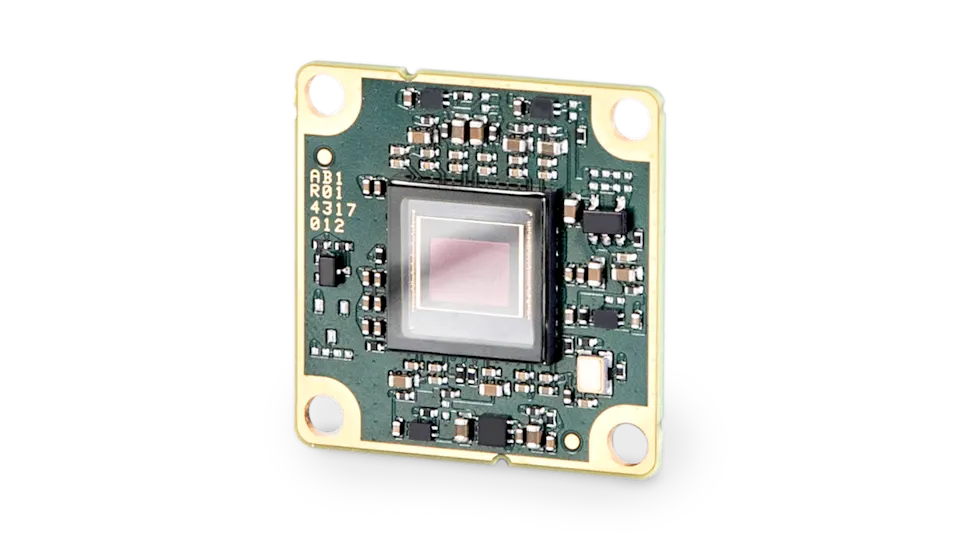

dart E
The dart E camera family features a BCON for MIPI interface, offers lean image processing, and provides the possibility for additional customization on the customer side.
With onsemi CMOS sensors with rolling shutter
Available as bare board or with S-mount
With Basler’s embedded BCON for MIPI interface, based on MIPI CSI-2
Optional internal image signal processor (ISP)
Compatible with embedded processing platforms from NXP® and NVIDIA®
Most cost-effective models within the dart camera series
dart camera models
Basler

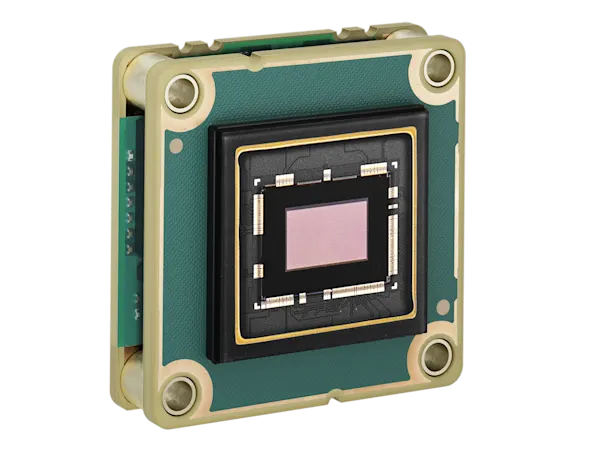

dmA2048-37gm (Mono)
-
Sensor
IMX900 -
Frame rate
37 fps -
Resolution (MP)
3.2 MP -
Interface
GigE -
Sensor Format
1/3.1''
Basler
dmA2048-37gc (Color)
-
Sensor
IMX900 -
Frame rate
37 fps -
Resolution (MP)
3.2 MP -
Interface
GigE -
Sensor Format
1/3.1''
Basler
dmA4096-9gc (Color)
-
Sensor
IMX545 -
Frame rate
9 fps -
Resolution (MP)
12.3 MP -
Interface
GigE -
Sensor Format
1/1.1"
Basler
dmA2448-23gm (Mono)
-
Sensor
IMX547 -
Frame rate
23 fps -
Resolution (MP)
5.1 MP -
Interface
GigE -
Sensor Format
1/1.8"
Basler
dmA4096-9gm (Mono)
-
Sensor
IMX545 -
Frame rate
9 fps -
Resolution (MP)
12.3 MP -
Interface
GigE -
Sensor Format
1/1.1"
Basler
dmA2840-14gm (Mono)
-
Sensor
IMX546 -
Frame rate
14 fps -
Resolution (MP)
8.1 MP -
Interface
GigE -
Sensor Format
2/3"
Basler
dmA2840-14gc (Color)
-
Sensor
IMX546 -
Frame rate
14 fps -
Resolution (MP)
8.1 MP -
Interface
GigE -
Sensor Format
2/3"
Basler
dmA2448-23gc (Color)
-
Sensor
IMX547 -
Frame rate
23 fps -
Resolution (MP)
5.1 MP -
Interface
GigE -
Sensor Format
1/1.8"
Basler
dmA3536-9gc (Color)
-
Sensor
IMX676 -
Frame rate
9 fps -
Resolution (MP)
12.5 MP -
Interface
GigE -
Sensor Format
1/1.6
Basler
dmA3536-9gm (Mono)
-
Sensor
IMX676 -
Frame rate
9 fps -
Resolution (MP)
12.5 MP -
Interface
GigE -
Sensor Format
1/1.6
