boA5320-150cc
- IMX532 Sensor
- CoaXPress (CXP-12) Interface
- 1.1" Sensor Format
- 150 fps Frame rate
- 16.1 MP Resolution (MP)

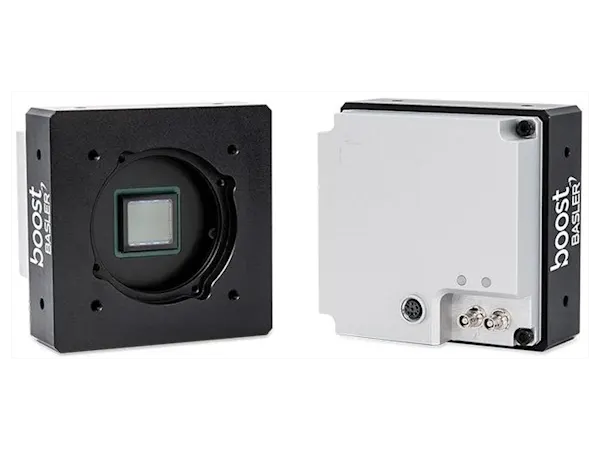

The Basler CoaXPress 2.0 boA5320-150cc camera with the Sony IMX532 CMOS sensor delivers 150 frames per second with a 16 MP resolution.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 108381 |
| Product Family | boost R |
| Camera Series | Basler boost |
| Camera Category | Area Scan Camera |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX532 |
| Shutter | Global Shutter |
| Sensor Format | 1.1″ |
| Sensor Type | CMOS |
| Sensor Size | 14.6 mm × 8.3 mm |
| Resolution (H x V) | 5320 px × 3032 px |
| Resolution | 16.1 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 150 fps |
| Mono/Color | Color |
| Spectrum | Visible |
Camera Data
| Interface | CoaXPress (CXP-12) |
|---|---|
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Pixel Bit Depth |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Requirements (typical) | 11 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 45 mm x 80 mm x 80 mm |
| Weight | 525 g |
| Lens Mount |
|
| Operating Temperature | max 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- CoaXPress 2.0
- KC
- RoHS
- UL
Easy Handling
| Auto Functions | Use the camera’s auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application. |
Image Quality Optimization
| Color Creation | With this set of features, you can correct artifacts in color images without affecting the structures in the image. |
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
| Vignetting Correction | Correct lens shading artifacts that occur in acquired images. |
Process Control
| Burst Mode | Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE. |
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
| Intelligent Light Control (SLP) | Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application. |
| Sequencer | Program sequential processes in the camera to control image acquisition and pre-processing in real time. |
| Timing | Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
