boA2448-250cm
- IMX537 Sensor
- CoaXPress (CXP-12) Interface
- 1/1.8" Sensor Format
- 250 fps Frame rate
- 5 MP Resolution (MP)

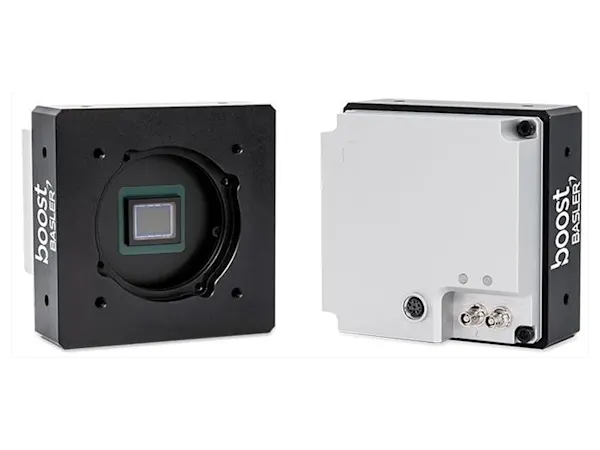

The Basler CoaXPress 2.0 boA2448-250cm camera with the Sony IMX537 CMOS sensor delivers 250 frames per second with a 5 MP resolution.
The boost series is available with different lens mounts (C-mount, F-mount and M42-mount). These must be purchased separately for the camera.
General Information
| Series Production | Q3/2022 |
|---|---|
| Manufacturer | Basler |
| Order Number | 108672 |
| Product Family | boost R |
| Camera Series | Basler boost |
| Camera Category | Area Scan Camera |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX537 |
| Shutter | Global Shutter |
| Sensor Format | 1/1.8″ |
| Sensor Diagonal | 8.8 mm |
| Sensor Type | CMOS |
| Sensor Size | 6.7 mm × 5.6 mm |
| Resolution (H x V) | 2448 px × 2048 px |
| Resolution | 5 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 250 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 66.2 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 1.9 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 9.9 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 71.7 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 39.9 dB (typical) |
Camera Data
| Interface | CoaXPress (CXP-12) |
|---|---|
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Pixel Bit Depth |
|
| Synchronization |
|
| Exposure Control |
|
| Digital Input | 1 |
| Digital Output | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoCXP or 24 VDC |
| Power Requirements (typical) | 12 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 45 mm x 80 mm x 80 mm |
| Weight | 525 g |
| Lens Mount |
|
| Operating Temperature | 0 °C – 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- CoaXPress 2.0
- EAC
- FCC
- GenICam
- KC
- RoHS
- UKCA
- UL
Easy Handling
| Auto Functions | Use the camera’s auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application. |
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
| Vignetting Correction | Correct lens shading artifacts that occur in acquired images. |
Process Control
| Burst Mode | Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE. |
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
| Intelligent Light Control (SLP) | Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application. |
| Sequencer | Program sequential processes in the camera to control image acquisition and pre-processing in real time. |
| Timing | Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
