beA4000-62km
- CMV12000 Sensor
- Camera Link Interface
- 1.75" Sensor Format
- 62 fps Frame rate
- 12 MP Resolution (MP)

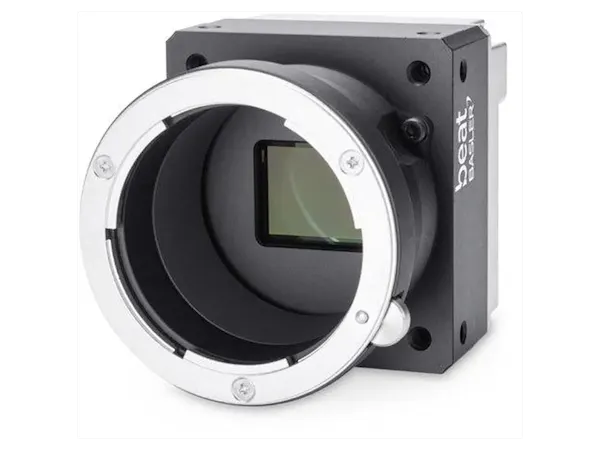

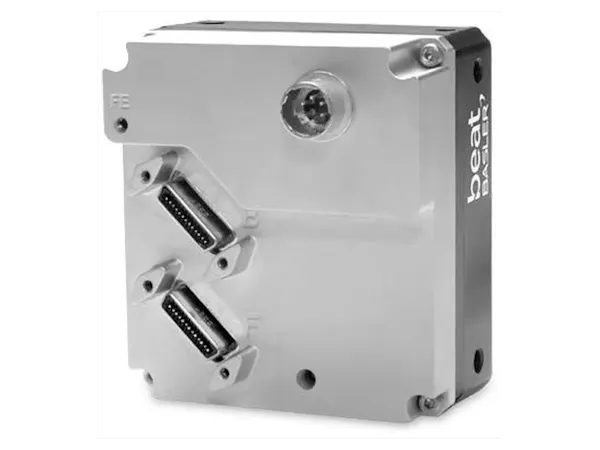

The Basler beA4000-62km Camera Link camera with the ams CMV12000 CMOS sensor delivers 62 frames per second at 12 MP resolution.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 106574 |
| Camera Series | Basler beat |
| Camera Category | Area Scan Camera |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | ams |
|---|---|
| Sensor | CMV12000 |
| Shutter | Global Shutter |
| Sensor Format | 1.75″ |
| Sensor Diagonal | 28.16 mm |
| Sensor Type | CMOS |
| Sensor Size | 22.52 mm × 16.9 mm |
| Resolution (H x V) | 4096 px × 3072 px |
| Resolution | 12 MP |
| Pixel Size (H x V) | 5.5 μm × 5.5 μm |
| Frame rate | 62 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 45.49 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 13.7 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 11.6 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 58.6 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 40.6 dB (typical) |
Camera Data
| Interface | Camera Link |
|---|---|
| Pixel Bit Depth |
|
| Camera Link Clock | 32.5 / 65 / 84 |
| Synchronization |
|
| Exposure Control | trigger width, timed, or off |
| Power Supply | 12-24 VDC |
| Power Requirements (typical) | 6 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 40 mm x 56 mm x 62 mm |
| Weight | 210 g |
| Lens Mount |
|
| Operating Temperature | 0 °C – 60 °C |
Manufacturer
| Basler |
|---|
Conformity
- Camera Link
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- IP30
- KC
- RoHS
- UKCA
- UL
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
Process Control
| Digital I/Os | Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders. |
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
