acA4112-20um
- IMX304 Sensor
- USB 3.0 Interface
- 1.1" Sensor Format
- 23 fps Frame rate
- 12 MP Resolution (MP)

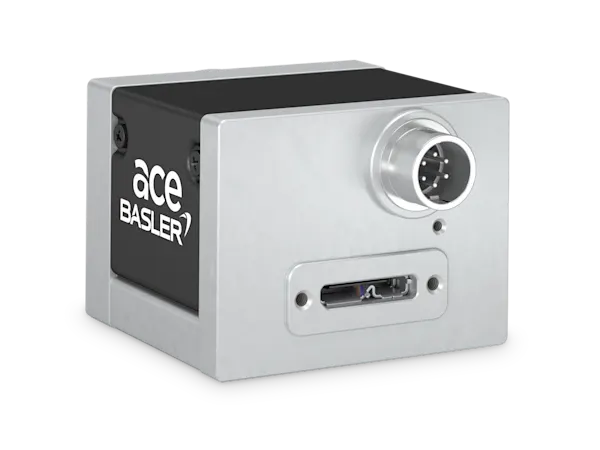

The Basler acA4112-20um USB 3.0 camera with the Sony IMX304 CMOS sensor delivers 23 frames per second at 12.3 MP Resolution.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 107413 |
| Product Family | ace L |
| Product Line | ace L |
| Camera Series | Basler ace |
| Camera Category | Area Scan Camera |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX304 |
| Shutter | Global Shutter |
| Sensor Format | 1.1″ |
| Sensor Diagonal | 17.52 mm |
| Sensor Type | CMOS |
| Sensor Size | 14.13 mm × 10.35 mm |
| Resolution (H x V) | 4096 px × 3000 px |
| Resolution | 12 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 23 fpsCalculate individual frame rate |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 68 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 2.3 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 10.3 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 72.8 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 40.1 dB (typical) |
Camera Data
| Interface | USB 3.0 |
|---|---|
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth |
|
| Exposure Control |
|
| Digital Input | 1 |
| Power Supply | Via USB 3.0 interface |
| Power Requirements (typical) | 3 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 35.8 mm x 40 mm x 30 mm |
| Weight | 136 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C – 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- IP30
- KC
- RoHS
- UKCA
- UL
- USB3 Vision
Easy Handling
| Auto Functions | Use the camera’s auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application. |
| Presettings | Automate recurring steps in your application by using the camera’s default settings and/or creating and saving your own presets. |
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
| PGI – Patented | Use the complete image enhancement package or choose from Denoising, Sharpness, Debayering, and Color-Anti-Aliasing to adjust the image quality. |
| Vignetting Correction | Correct lens shading artifacts that occur in acquired images. |
Process Control
| Digital I/Os | Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders. |
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
| Intelligent Light Control (SLP) | Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application. |
| Sequencer | Program sequential processes in the camera to control image acquisition and pre-processing in real time. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
