acA3800-10gm
- MT9J003 Sensor
- GigE Interface
- 1/2.3" Sensor Format
- 10 fps Frame rate
- 10 MP Resolution (MP)

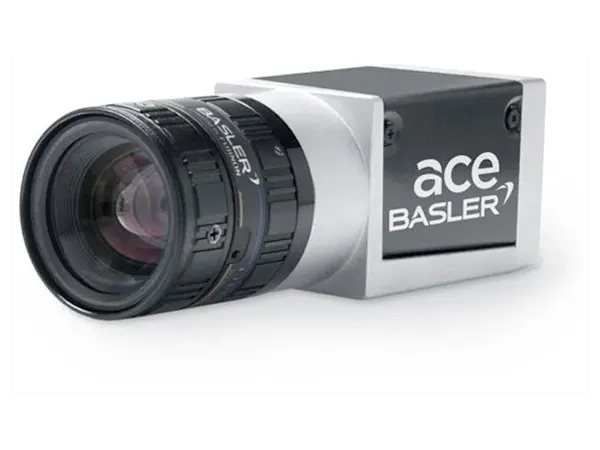

The Basler acA3800-10gm GigE camera with the onsemi MT9J003 CMOS sensor delivers 10 frames per second at 10 MP resolution.
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 107538 |
| Product Family | ace Classic |
| Product Line | ace Classic |
| Camera Series | Basler ace |
| Camera Category | Area Scan Camera |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | onsemi |
|---|---|
| Sensor | MT9J003 |
| Shutter | Rolling Shutter |
| Sensor Format | 1/2.3″ |
| Sensor Diagonal | 7.93 mm |
| Sensor Type | CMOS |
| Sensor Size | 6.44 mm × 4.62 mm |
| Resolution (H x V) | 3840 px × 2748 px |
| Resolution | 10 MP |
| Pixel Size (H x V) | 1.67 μm × 1.67 μm |
| Frame rate | 10 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 46 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 6 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 2.8 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 54 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 34 dB (typical) |
Camera Data
| Interface | GigE |
|---|---|
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth | 12 bits |
| Exposure Control | programmable via the camera API |
| Digital Input | 1 |
| Power Supply | PoE or 12 VDC |
| Power Requirements (typical) | 3.3 W |
| Power Consumption PoE | 3.7 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 42 mm x 29 mm x 29 mm |
| Weight | 90 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C – 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- GigE Vision
- IEEE 802.3af (PoE)
- IP30
- KC
- RoHS
- UKCA
- UL
Easy Handling
| Auto Functions | Use the camera’s auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application. |
| Presettings | Automate recurring steps in your application by using the camera’s default settings and/or creating and saving your own presets. |
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
Process Control
| Digital I/Os | Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders. |
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
| Sequencer | Program sequential processes in the camera to control image acquisition and pre-processing in real time. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
