a2A2560-131cmSWIR
- IMX992 Sensor
- CoaXPress (CXP-12) Interface
- 1/1,4'' Sensor Format
- 131 fps Frame rate
- 5.2 MP Resolution (MP)

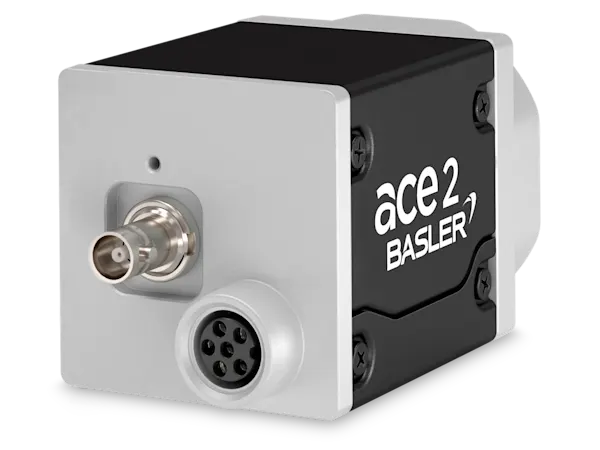

The Basler a2A2560-131cmSWIR CoaXPress (CXP-12) camera with the Sony IMX992 InGaAs sensor delivers 131 fps (frames per second) at 5.2 MP resolution.
Classified as a dual use product (ECCN 6A003.b.4.a)
Regulation (EU) 2021/821
Export license required
General Information
| Manufacturer | Basler |
|---|---|
| Order Number | 109632 |
| Product Family | ace 2 X |
| Camera Series | Basler ace 2 |
| Camera Category | Area Scan Camera |
| Warranty | 36 Months |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX992 |
| Shutter | Global Shutter |
| Sensor Format | 1/1,4” |
| Sensor Diagonal | 11.4 mm |
| Sensor Type | InGaAs |
| Sensor Size | 8.8 mm × 7.1 mm |
| Resolution (H x V) | 2560 px × 2048 px |
| Resolution | 5.2 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 131 fps |
| Mono/Color | Mono |
| Spectrum | Visible + SWIR |
Camera Data
| Interface | CoaXPress (CXP-12) |
|---|---|
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Pixel Bit Depth |
|
| Synchronization |
|
| Exposure Control |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoCXP |
Housing
| Housing Type | Box |
|---|---|
| Protection Class | IP30 |
| Housing Size (L x W x H) | 42.8 mm x 29 mm x 29 mm |
| Weight | 90 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C – 50 °C |
Technical Drawing
Conformity
- CE (incl. RoHS)
- CoaXPress 2.0
- EAC
- FCC
- GenICam
- IP30
- RoHS
- UL
Easy Handling
| Auto Functions | Use the camera’s auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application. |
Image Quality Optimization
| Image Adjustment | Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features. |
| Pixel Correction Beyond – Patented | Use the Dynamic Defect Pixel Correction to minimize the influence of disturbing defect pixels without affecting the structures in the image. |
Process Control
| Burst Mode | Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE. |
| Information Utilisation | Use additional information from Chunks and Events to optimize your automation. |
| Intelligent Light Control (SLP) | Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application. |
| Sequencer | Program sequential processes in the camera to control image acquisition and pre-processing in real time. |
| Timing | Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP. |
Speed Increase
| Data Reduction | Use the Binning, Decimation, or ROI features for customized data reduction. |
